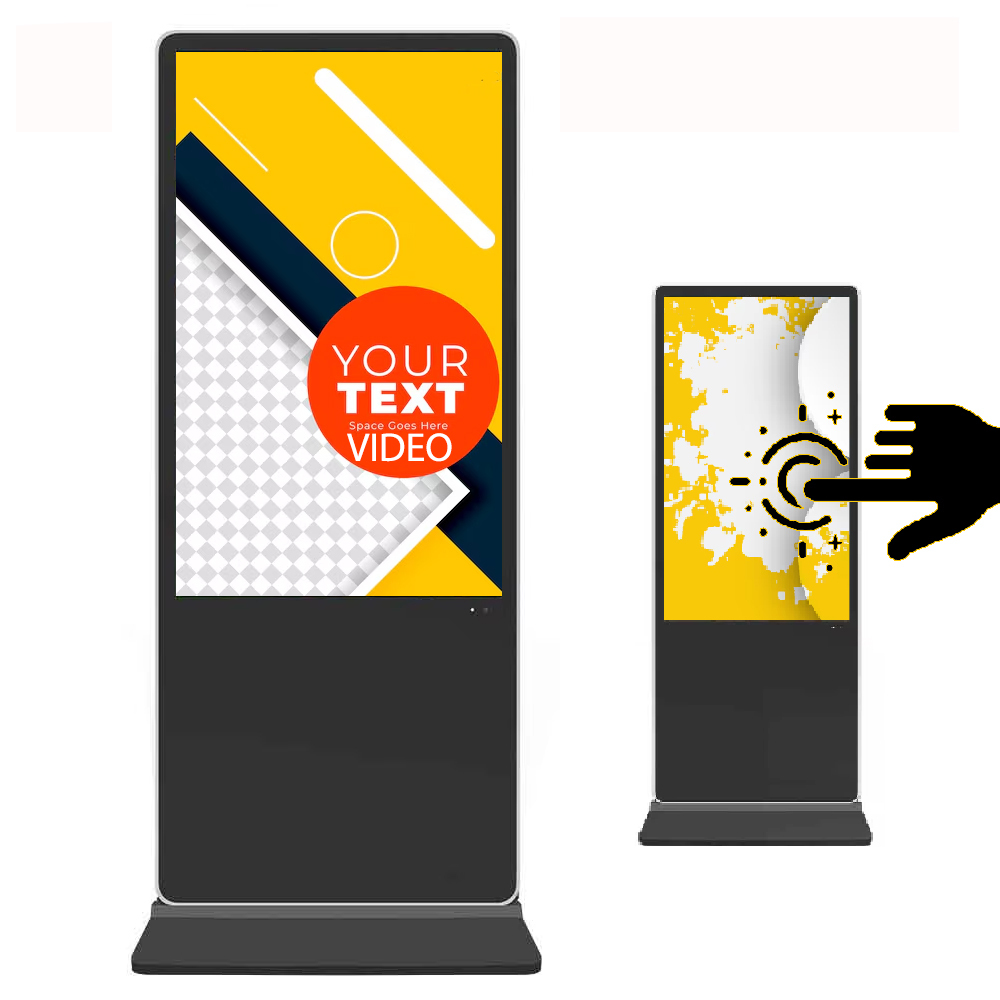

55-inch Android Interactive Totem Display
This 55-inch interactive totem features an advanced 4K display (2160x3840 resolution) with capacitive touch. Powered by a RK3568 (Cortex-A55, 1.8GHz) processor, 2GB DDR RAM, and 16GB of internal EMMC storage, this totem runs on Android 11, making it ideal for a wide range of interactive applications.
Key Features:
- Display: The 4K A+ 55-inch IPS panel with a 9:16 aspect ratio is perfect for high-resolution vertical displays. It offers a 1200:1 contrast ratio, 450 cd/m² brightness, and 178° viewing angles, ensuring a clear, vibrant display from any angle.
- Network Capabilities: Includes WiFi (IEEE 802.11b/g/n, 2.4G) and Ethernet (RJ45 10/100/1000 Mbps), with optional Bluetooth and 4G connectivity to meet various network requirements.
- Interface: Comes equipped with USB ports (for connecting peripherals such as a mouse or USB drive), an HDMI output for additional displays, and a TF card slot supporting up to 64GB for media storage.
- Multimedia Support: The totem supports multiple video formats (MPEG-1, MPEG-2, MPEG-4, H.263, H.264, etc., up to 4K resolution), audio formats (MP3/WMA/AAC), and image formats (JPG/BMP/PNG/GIF).
- Speakers: Built-in dual 8Ω 5W speakers for quality sound output, ideal for multimedia presentations.
Build and Design:

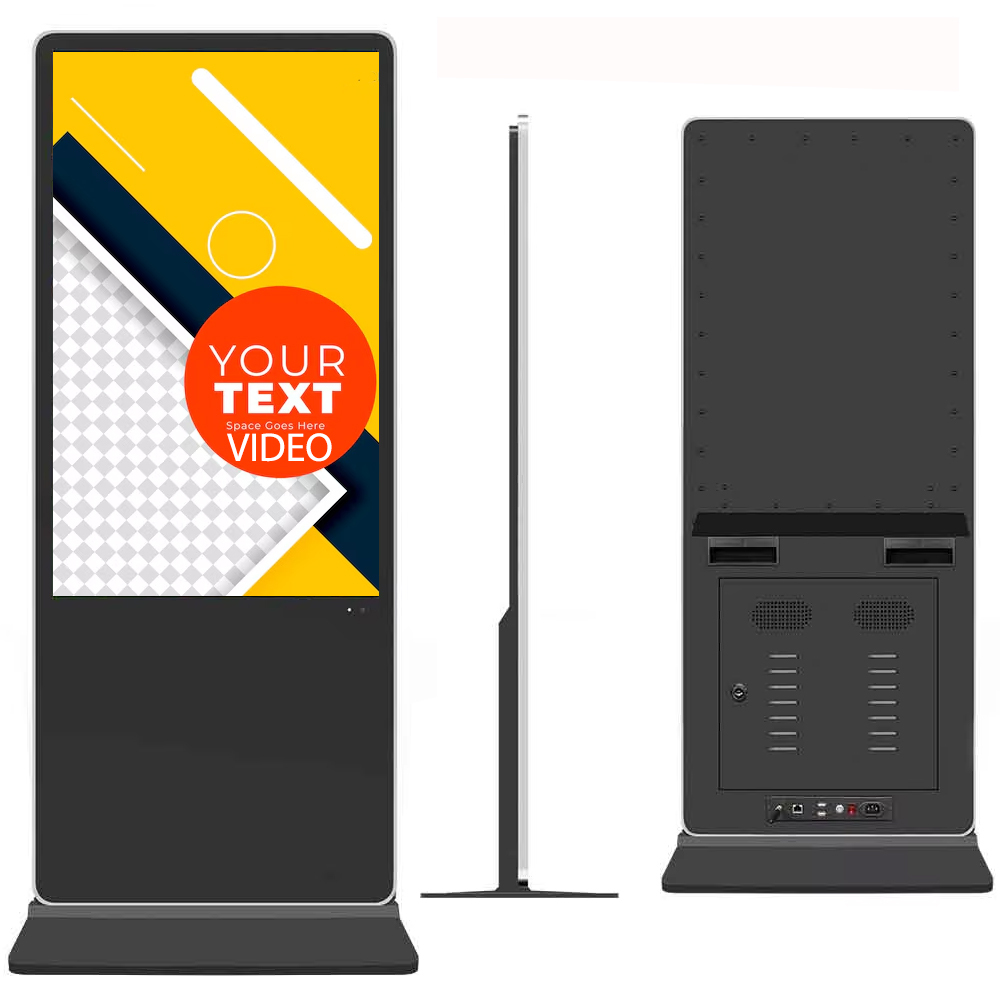

- Dimensions: With a sleek, vertical design, the totem measures 1207.6 x 678.4 mm, offering a modern and professional appearance.
- Durability: Engineered for long-term use, with a 60,000-hour lifespan.
- Operating Conditions: Designed for continuous use (7x24h), with an operating temperature range from 0°C to +50°C and humidity tolerance from 10%RH to 85%RH, ensuring reliable performance in various environments.
- Power: Consumes ≤110W, making it energy-efficient, and operates on AC 100-240 V ~ 50/60 Hz.
Additional Features:
- Optional Connectivity: Expandability with Bluetooth and 4G modules for added flexibility in connectivity.
- Multi-language support ensures that the system can be used across various regions.
- Installation: Designed for floor-standing vertical installation, ideal for public spaces, retail environments, and corporate settings.
This totem is a perfect solution for interactive advertising, information displays, and public communications. With Android 11, it supports a wide range of apps and can be customized to suit specific business needs. Its 4K display and robust network options make it versatile for different industries and applications.
SPECIFICATIONS
| System |
CPU |
RK3568 (Cortex-A55, 1.8GHz) |
| RAM |
2GB DDR |
| Internal memory |
16GB EMMC |
| Operation System |
Android 11 |
| Display |
Touch Screen |
Capacitive Touch Display |
| Dimension(mm) |
1207.6*678.4 mm |
| LCD |
A+ 4K LCD: 55" IPS (2160H*3840V) |
| Display scale |
09:16 |
| Respond time(ms) |
8 ms |
| Contract |
≥1200:1 |
| Luminance |
450cd/m2 |
| Visual angle |
178°/178° |
| Lifespan |
60000 h |
| Display color |
16.7M (8-bit) |
| Network |
WiFi |
IEEE 802.11b/g/n, 2.4G |
| Ethernet |
LAN(RJ45) 10/100/1000 Mbp |
| Buletooth |
(Optional) |
| 4G |
(Optional) |
| Interface |
Card slot |
TF card*1,Support up to 64GB |
| USB port |
USB *2,can connect mouse, USB disk, etc |
| Video port |
HDMI out*1 |
| Power Jack |
Power Cable AC 100-240 V ~ 50/60 Hz |
| Speaker |
8Ω 5W*2 |
| Media plays |
Video format |
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K |
| Audio format |
MP3/WMA/AAC etc. |
| Photo |
JPG,BMP,PNG,GIF |
Working
temperature |
Working time(h) |
7*24h |
| Working temperature |
0℃~+50℃ |
| Working humidity |
10%RH~85%RH |
| Storage humidity |
0℃~+60 ℃ |
| Others |
Installation |
Floor standing - Vertical direction |
| Mic |
N/A |
| Camera |
N/A |
| Surface tempered glass |
No |
| Language |
Multi-language |
| Max power consumption |
≤110W |
| Accessories |
Power cord*1, antenna*1, remote*1, key*1 |
