LCD display player can be used in advertising machine and ordering machine.

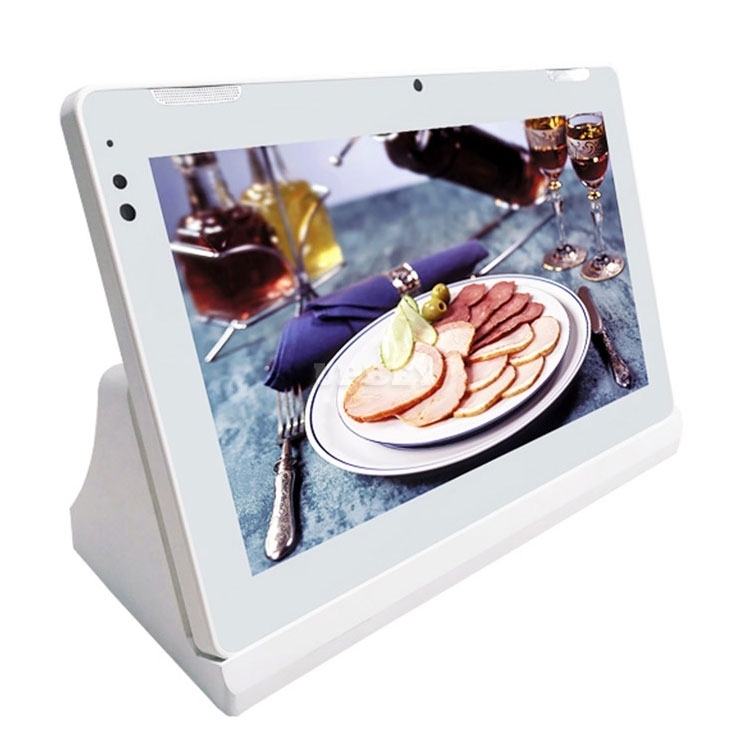

Introducing the 10-inch LCD Advertising Machine Digital Menu Display with Power Bank! This compact device is a game-changer for businesses looking to enhance their advertising and promotional efforts. With its high-resolution LCD screen and built-in battery rechargeable, it offers a versatile and hassle-free solution. Display your menu items, promotions, and videos in vibrant detail, while enjoying the freedom of wireless operation. The user-friendly controls and sleek design make it a perfect fit for any setting. Elevate your marketing strategies with the 10-inch LCD Advertising Machine Digital Menu Display with Power Bank and captivate your audience like never before.
SPECIFICATIONS
| Main Component |
主控（Main Chip） |
RK3566
CPU:Quad-core Cortex-A55
GPU:Mali-G52 2EE |
| 显示器（Display） |
10.1 inch IPS(1280X 800) 16:10 |
| 触摸屏（Touch Panel） |
Capacitive multi-touch(5point) G+G |
| 輝度 |
400 nits
(50000h Lifetime backlight) |
| DDR存储器（DDR Memory） |
2G DDR3 |
| Flash存储器（Flash Memory） |
EMMC 16G |
| Speaker |
|
1w x 2 Back Mount |
| Camera |
2M pixel |
Front: 2M
Back: 5M(optional) |
| Indicator LED |
2 color LED（green/red赤） x 2 |
One for device status |
| ※right side mount |
One for battery status |
| Sensor |
Human sensor |
Support |
| |
|
| |
Wifi |
IEEE802.11 a/b/g/n/ac |
| Communication |
BLE |
BLE 4.2 |
| Sensor |
Gravitysensor |
Support |
| Physical buttons |
Power Button |
Support(Button) |
| Reset |
Support(Hole) |
| I/O interface |
USB port-1 (Type-C) |
Support |
| Water proof, back side mount |
| |
|
| |
| Power |
Internal rechargeable battery |
8000mAH
Operating time: 6h |
| |
|
| |
|
| Charging |
Cradle charger stand |
Wireless charging
15W X1
1.2A Battery charging |
| Multi unit charger station (gang charger) |
N/A |
| Backup battery |
For RTC |
N/A |
| |
OS |
Android11 |
| Size/weight |
260 x 190 x 18 mm |
Weight: 850g(with 8000mAH battery) |
| Case material |
ABS + elastomer |
|
| Environment |
operation：0～35℃ |
|
| storage：-10～45℃ |
| Drop resistance |
70cm |
Wood floor |
| Water proof |
IP54 |
|
FEATURES:
- Ordering interface - food pictures can be enlarged, pictures can show the introduction of food.
- Touch and select the desired flavor
- Ordered dishes interface - functional options have a variety of functions to choose, such as all called up, all delete, whole requirements, and so on function by girl
- The ordered dishes interface can modify individual dishes or the whole dishes
- This interface has the function of cleaning empty table, changing table, presenting dishes and so on
- Auto-start and Loop functions are pre-programmed so the content will automatically start and play on a loop when powering on the device or replacing the input device, without needing to access any settings.
- HD and IPS versions available
- Multiple input options available – USB, SD Card, etc.
APPLICATIONS:
- Restaurants
- Hotels
- Cafeterias
- Coffee Shops
TECHNICAL SPEC:
All products are custom made and therefore, we can amend the brightness, input types, input position and any other aspect of the specification to suit your requirements.
