10.1-Inch Full Lamination Display with Ultra-Narrow Bezel
Designed for modern commercial and smart applications, this 10.1-inch Android touch screen display combines a slim, elegant appearance with reliable performance.

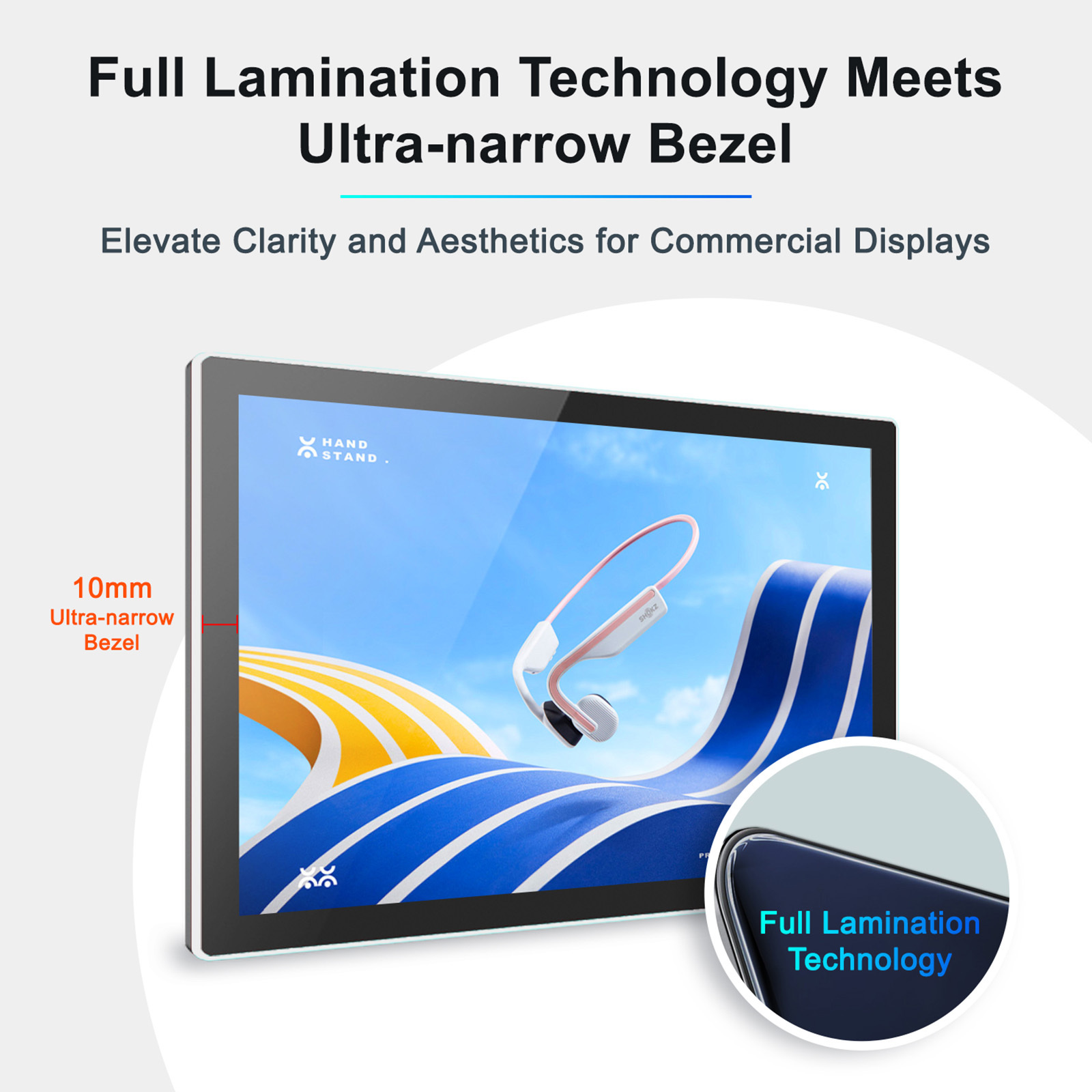

The full lamination structure reduces the air gap between the LCD panel and touch layer, providing a clearer image, better touch response and a more premium visual experience.
Its ultra-narrow bezel maximizes the visible screen area while keeping the overall device compact, making it suitable for installations where space and aesthetics are important.
Specification
| Product name |
New Narrow Bezel Flat LCD Panel |
| Item name |
LCD Horizontal Digital Signage Display
10-point capacitive touch screen |
| Resolution |
1920*1080 |
| CPU |
Rockchip (customizable with various CPU available) |
| Internal memory |
16GB and ROM 2GB DDR |
| Total Size |
243.18 × 161.98 × 24.60 mm |
| Display Size |
10.1 inch, with back light WLED |
| Operation System |
Android 11 (customizable to support different versions of Android) |
| Content Managment System |
CMS: Our cloud-based system available for purchase |
| Network |
WiFi 2.4G, Bluetooth 4.0, RJ45, (POE optional)
Support external 3G/4G USB dongle |
| Luminance |
300cd/m2 |
| Speakers |
2×2W speakers |
| Lifespan |
60000 h |
| Respond time（ms） |
10 |
| Display Scale |
＞16:9 |
| Contrast |
≥1000:1 |

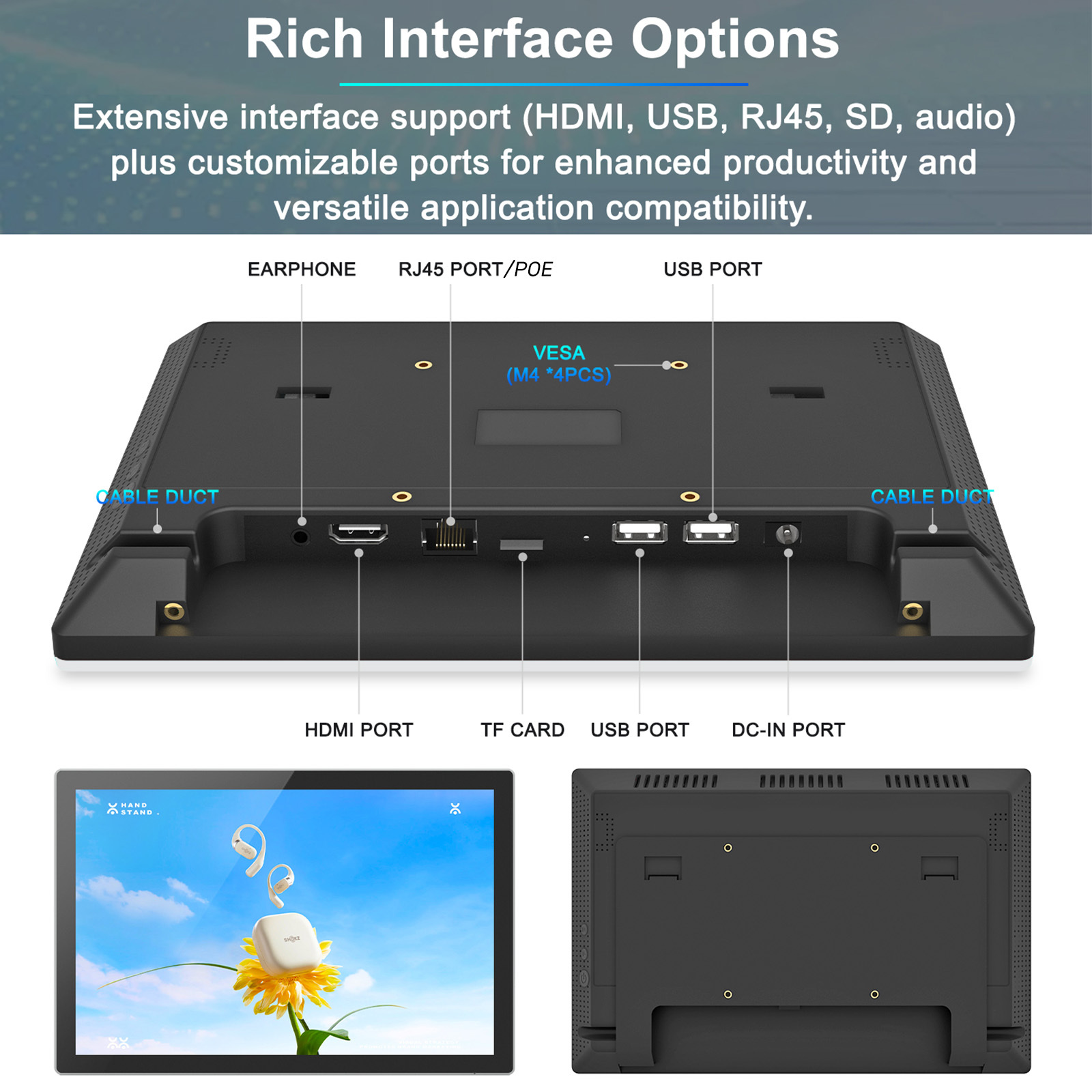

| Interface |
On/Off, Earphone, TF Slot, 2xUSB, RJ45, Power Supply
Front camera 2MP |
| Video format |
MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format |
Wave/MP3/WMA/AAC |
| Photo format |
JPEG/BMP/TIFF/PNG/GIF |
| Adapter |
12V 2A |
| Language |
Support multi-languauge |
| Installation |
Wall Mounted and Tabletop stand installation |
| Working Time |
7 days x 24h |
Applications
Digital Signage
Use the compact 10.1-inch screen for promotional content, information displays, menus, advertising and interactive content in retail and commercial environments.
Smart Home Control
The slim ultra-narrow bezel design makes it suitable as a wall-mounted smart home control panel for centralized control of connected devices.
Hotels & Hospitality
Ideal for guest information, room services, digital concierge systems and interactive hotel applications.
Retail & Commercial
Use the display for product information, interactive catalogs, self-service applications and customer engagement.
Meeting Rooms & Offices
Suitable for room booking systems, meeting room information panels and interactive office applications.
OEM & ODM Projects
The display can be customized for different commercial projects, including enclosure design, logo, software, interface and hardware configuration.
Why Choose This Display?
The combination of full lamination, ultra-narrow bezel and Android functionality creates a modern display solution that is both visually attractive and easy to integrate.
With the RK3566 platform and 2GB + 16GB configuration, it provides a compact Android platform for a wide range of commercial and smart applications.
Contact BlueShell for OEM/ODM customization, bulk orders and project-based solutions.
