| System |
Operation system |
Embedded Linux OS |
| Online visitor |
Support 4 visitors at the same time |
| Image Capture |
Image sensor |
1/2.9 inch Progressive Scan CMOS |
| Minimum Illumination |
0.5Lux（Color mode）,0.1Lux（B&W Mode） |
| Lens/View angle |
3.5-9.5mm zoom lens/ 41 ~ 110°(Diagonal) |
| Night vision |
Automatic switching of dual filters, 6pcs 850nm infrared lights and 4pcs high-power spotlights, with irradiation distance of 15-20 meters |
| Video |
Encode format |
H.264+/H.264 main profile/Motion-JPEG/JPEG |
| Streams |
Main stream：1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream：360p(640×360)@15fps |
| Bit Rate/Max Fps |
128～4096kbps/30pfs |
| Image adjustment |
Brightness and contrast can be adjusted |
| Audio |
Input |
Built in -28db±5dB microphone |
| Output |
Built-in 8Ω2w speakers |
| Sampling frequency / width |
8KHz/16bit |
| Compression standard |
ADPCM/32kbps |
| Network |
Ethernet |
10Mbps/100Mbps adaptive /RJ45 interface |
| Protocols |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P等 |
| Wireless LAN |
IEEE802.11b/g/n, Supports AP mode |
| Wireless LAN Frequency |
2.4~ 2.4835GHz |
| Wireless LAN security |
64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption |
| Pan/Tilt |
Pan-tilt |
Pan：355°,tilt：95° |
| Preset position |
PC Client：support 16 positions, Mobile APP:support 5 positions |

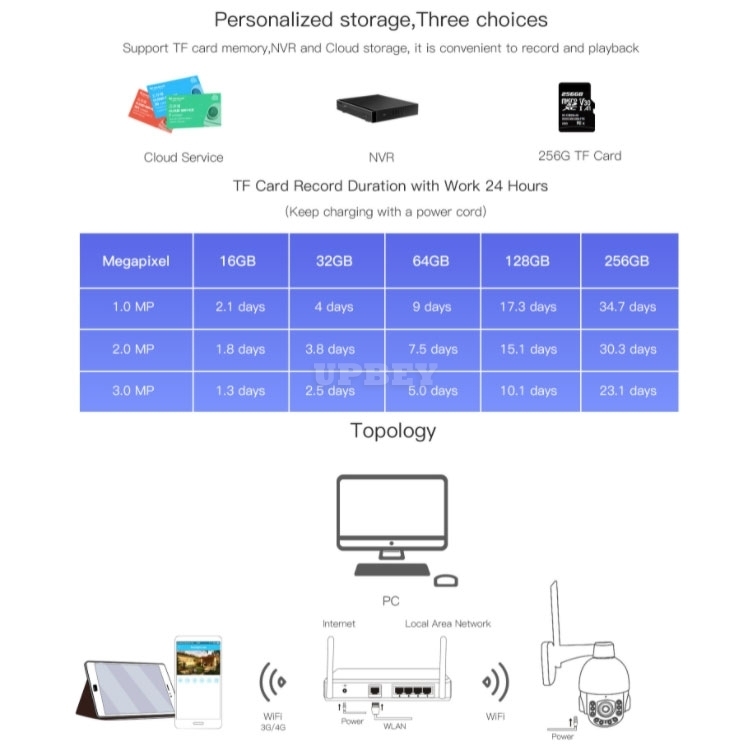

| Memory |
Socket |
TF Push-push socket,Maximum support 256GB; Cloud Storage;NVR；NAS |
| Alarm |
Alarm Trigger |
Support motion detection, human detection, human tracking, crying detection, smoke alarm detection, absence detection |
| Physical Environmental |
Rated voltage |
DC12V 2A ±5% |
| Power consumption |
Rated power: 3.9W (IR on)/ Max power: 12.3W |
| Operating condition |
Temperature:-10～50℃,humidity:＜90% |
| Weight |
Net: 915g Gross：TBD g(Note: in kind prevail) |
| Package size |
257*208*130mm(L*W*H) |
